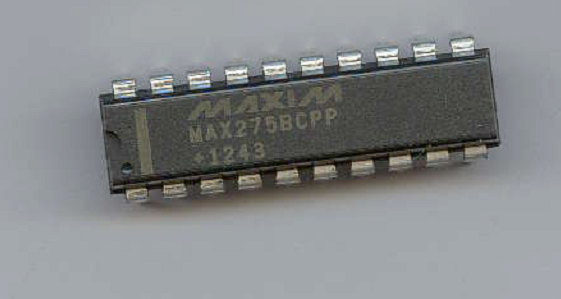

MAX275BCPP, Aktive Filterschaltungen
MAX275BCPP, IC mit zahlreichen aktiven Filterschaltungen, Entwicklungssoftware verfügbar
10,120 €   Stück
inkl. 19% MwSt, zzgl. Versand

Art-Nr. MAX275BCPP
Lieferzeit 5 Arbeitstage ab Zahlung* 5 Arbeitstage ab Zahlung*

Menge Stück

grafiken/verweis.png


The MAX275BCPP+ is a 4th order, continuous time active filter in 20 pin DIP package. The MAX275 comprises of two 2nd-order sections, permitting 4th-order filters to be realized. This continuous time active filters consisting of independent cascadable 2nd-order sections. Each section can implement any all pole bandpass or low pass filter response such as Butterworth, Bessel, Chebyshev is programmed by four external resistors. The MAX275 provide lower noise that switched-capacitor filters as well as superior dynamic performance due to the continuous time design. Since continuous time filters do not require a clock, the clock noise is eliminated. Typical applications include audio/sonar/avionics frequency filtering, DAC output-smoothing filters, low distortion anti-aliasing filters, modems and vibration analysis.

Supply voltage range is 2.37V to 5.5V
Operating temperature range from 0°C to 70°C
Centre frequencies range up to 300KHz
Centre frequency accurate over temperature within ±0.9%
Total harmonic distortion (THD) is typically -89dB
Supply current is 10mA
Slew rate is 10V/µs


Lagerbestand: 11 Stück




Schlagworte:
IC  Filter  programmierbar  analog
